RFID Tire Whole Solution

MESNAC supplies a whole solution for RFID tire from aspects of RFID tire tag series products, RFID tire production automatic equipment, informatization system, etc.

The MESNAC RFID(Radio Frequency ldentification) tire tag has been developed to be embedded in the tire during the tire building process. The tag can endure the high temperature and pressure during the tire curing process. And the coupled firm with flexible construction enough to withstand deformation and stress for the lifetime of the tire.

As tire's lifetime electronic identification card, RFID tag supplies a Unique ltem ldentification(Ull) , which can be used for tire automatic identification. Ull can be locked or permanent locked for safety. RFIlD tag also provides a user memory of 0-2K bits. Necessary data can be written according to user 's requirements during tire production, usage and retread. User memory can be protected by password or be permanent locked.

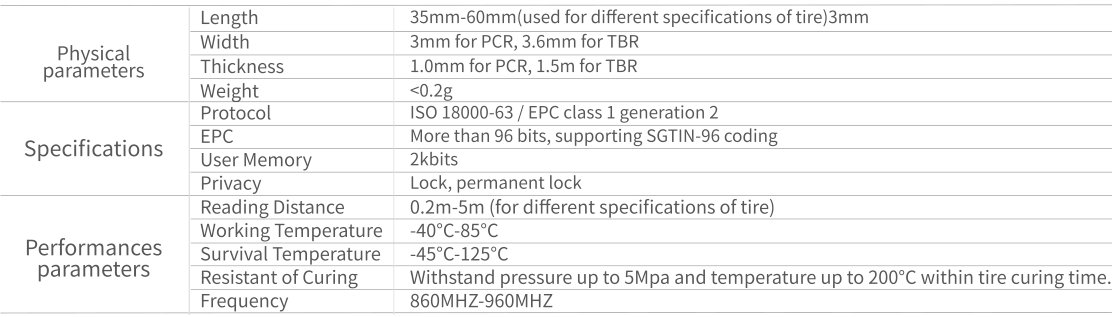

Features:


Application Method of RFID Tire Tag

RFID tag can be embedded in sidewall of tire during building process. It is important to keep the tag antenna perpendicular to the carcass cords. There should be good adhesion between the RFID tags and the tire, with no bubbles.

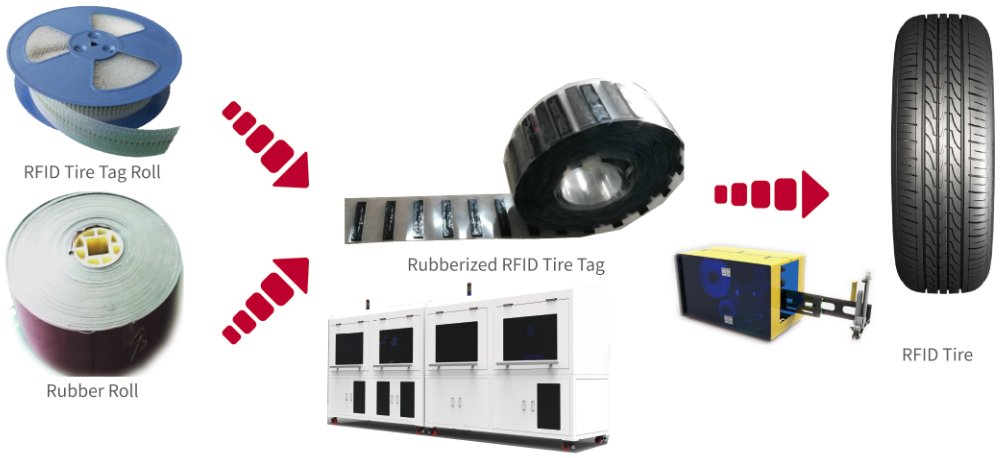

Application Process of RFID Tire Tag

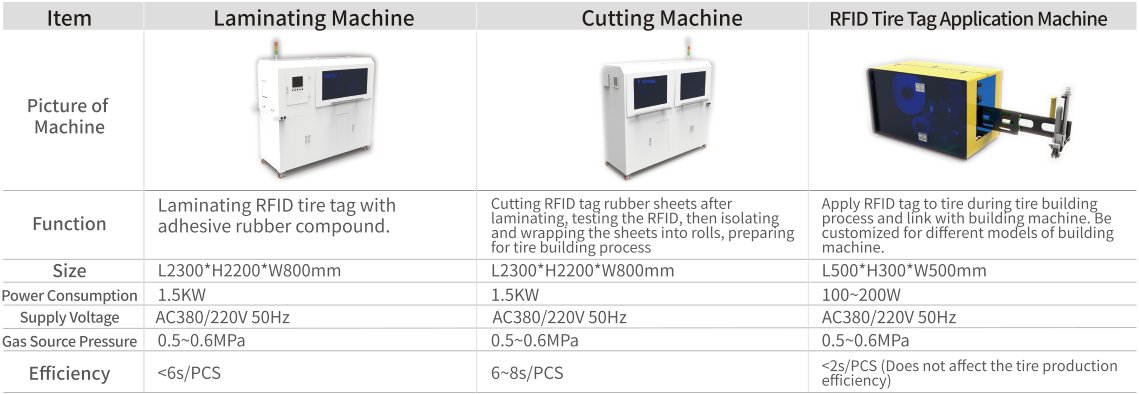

Automatic Equipment of RFID Tire Tag


ISO standards

lSO 20909:2019 Radio frequency identification (RFID) tyre tags

ISO 20910:2019 Coding for radio frequency identification(RFID) tyre tags

ISO 20911:2020 Radio frequency identification(RFID) tyre tags —Tyre attachment classification

ISO 20912:2020 Conformance test methods for RFID enabled tyres
